Bernina

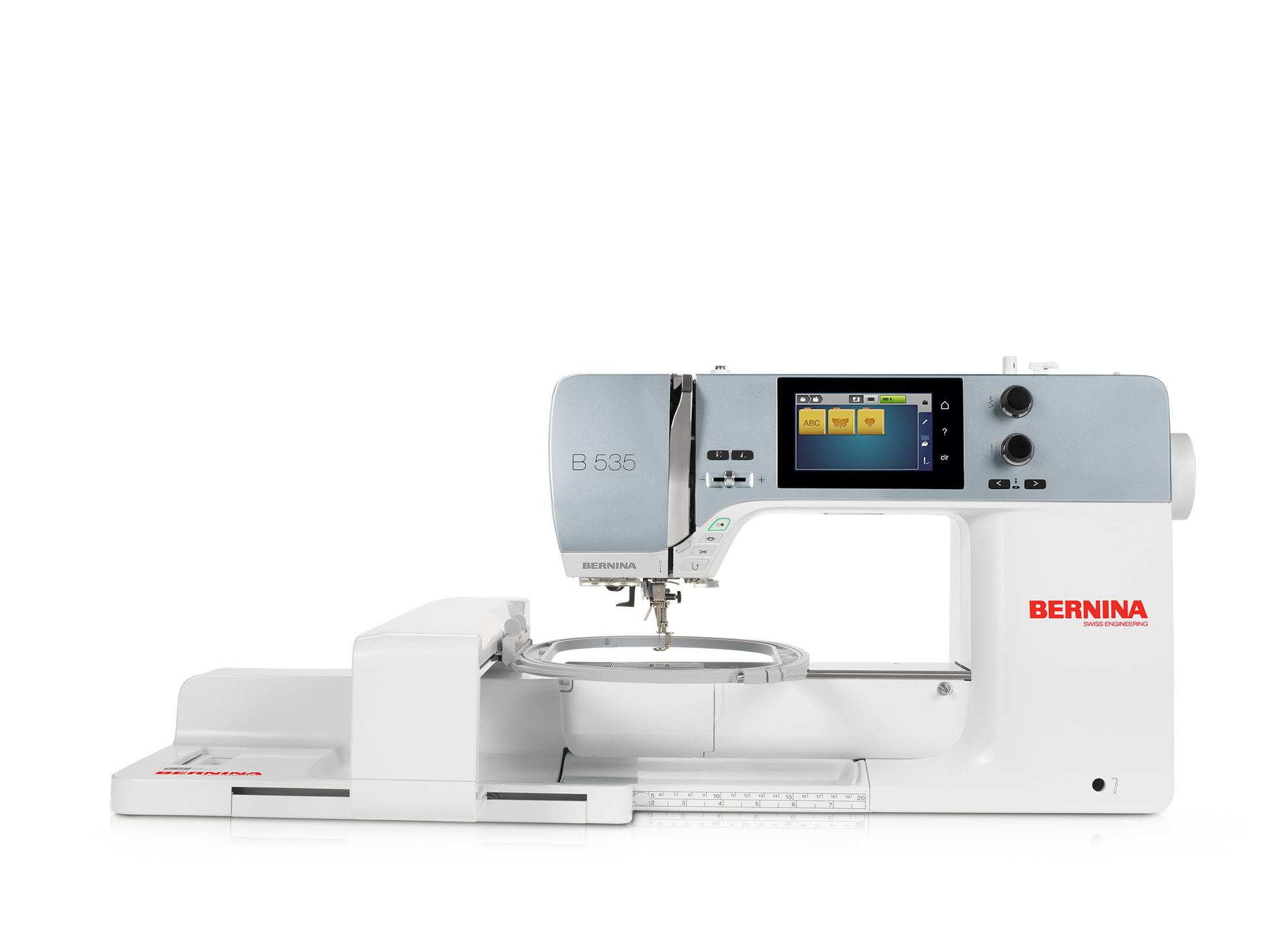

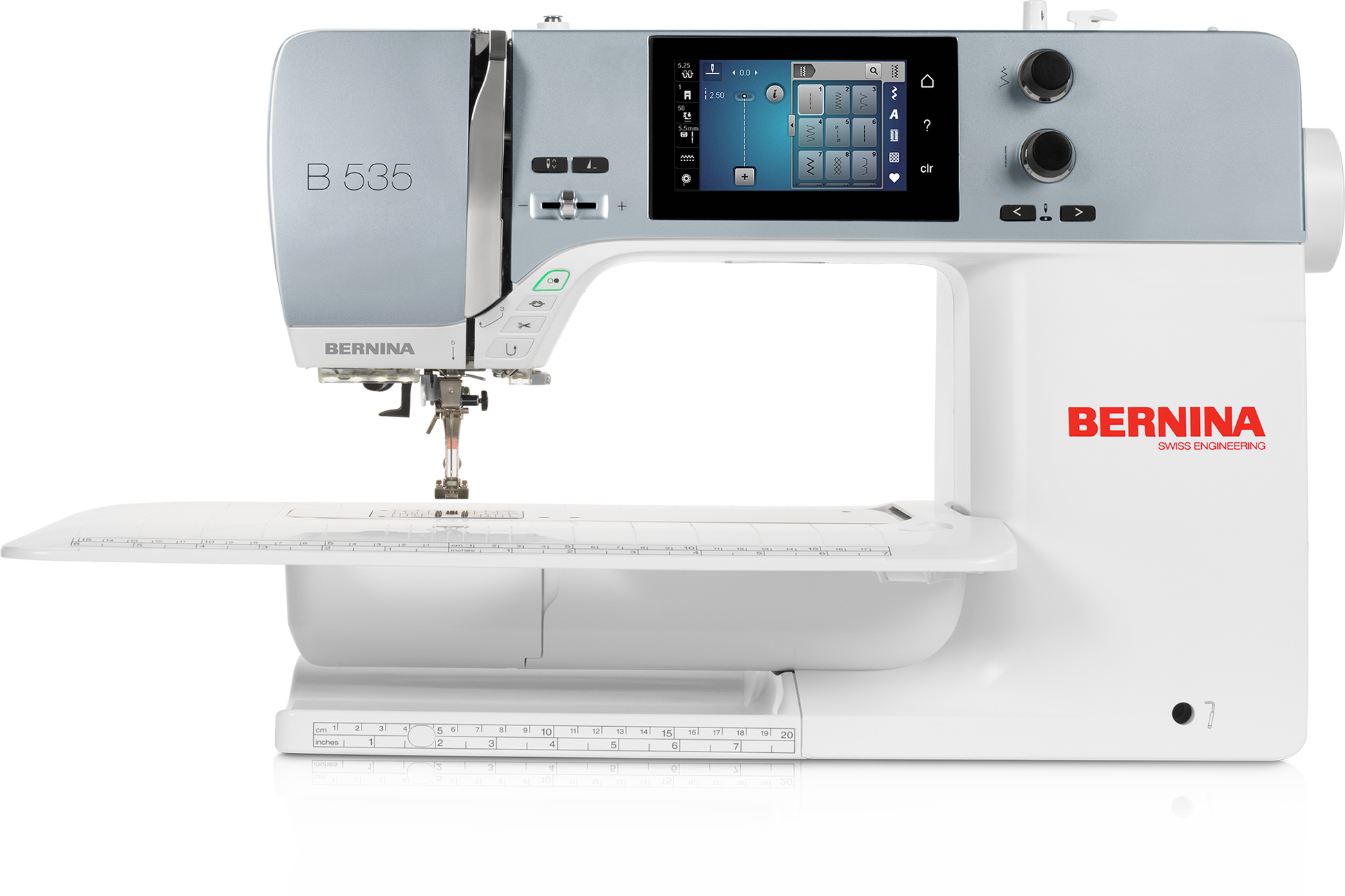

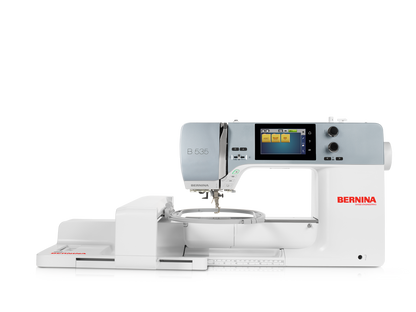

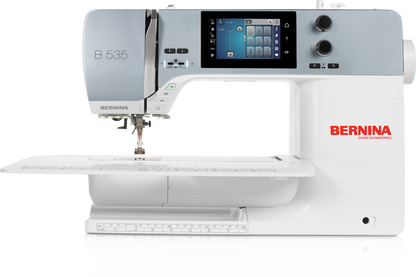

BERNINA 535 E

BERNINA 535 E

Call for More Info or Visit In-Store

Flexible financing available through Synchrony

The BERNINA 535 E is an advanced embroidery machine that combines precision with versatility. It features a large color touchscreen, 200 embroidery designs, and customizable stitch options for detailed work. With a generous embroidery area and high-speed stitching, it's perfect for tackling intricate projects with ease and efficiency.

View full details

Main Features

  • Huge selection of stitches
  • Perfect for sewing fine fabrics
  • Threads are cut automatically
  • Perfect tension for perfect stitches
  • Sewing Consultant
  • Embroidery module included

The BERNINA 535 E is an advanced embroidery machine that combines precision with versatility. It features a large color touchscreen, 200 embroidery designs, and customizable stitch options for detailed work. With a generous embroidery area and high-speed stitching, it's perfect for tackling intricate projects with ease and efficiency.

Specifications

Sewing space: 8.5" right of needle
Workspace height: 4.3"
Display: 4.3" color touchscreen
Maximum sewing speed: 1,000 stitches per minute
Maximum embroidery speed: 1,000 stitches per minute
Stitch width: 5.5 mm
Stitch length: 6 mm
Needle positions: 11
Built-in stitches: 1,048
Decorative stitches: 300+
Buttonholes: 14 automatic buttonholes
Sewing alphabets: 5
Built-in embroidery designs: 200+
Embroidery alphabets: 7
Maximum embroidery area: 15.7" × 5.9"
LED sewing lights: 12
Bobbin system: Jumbo bobbin with BERNINA Hook
Connectivity: USB design transfer
File format support: EXP, DST, PES, PEC, JEF, SEW, PCS, XXX
Presser foot pressure: Adjustable
Thread cutter: Automatic
Needle threader: Semi-automatic
Tension system: Adaptive thread tension
Feed system: BERNINA Dual Feed compatible
Free-motion support: Included
Knee lift system: Free Hand System (FHS) compatible
Machine type: Sewing and embroidery combination machine
Embroidery capability: Included via embroidery module
Key features: Sewing Consultant, drag-and-drop embroidery editing, pattern mirroring, pattern repeat, programmable securing function, stitch memory, start/stop button, slide speed control

Accessories Included

Embroidery Module M
Reverse Pattern Foot #1
Overlock Foot #2
Buttonhole Foot with Slide #3A
Zipper Foot #4
Open Embroidery Foot #20
Embroidery Foot #26
Small embroidery hoop
Medium embroidery hoop
Large oval embroidery hoop
Freearm slide-on extension table
Free Hand System (FHS) knee lifter
Foot control pedal
Accessory box
Soft machine cover
Bobbins
Seam ripper
Assorted needles
Screwdriver
Cleaning brush
Spool discs
Foam pads
Height compensation tool
Machine oil
Power cord
Touchscreen stylus pen

B535E Manual

Perfect tension for perfect stitches

  • Precise & powerful sewing
  • Just sew without any worries
  • Achieve beautiful stitch results

Thanks to the Adaptive Thread Tension you get optimal thread tension for perfect stitch quality on both sides of the fabric.

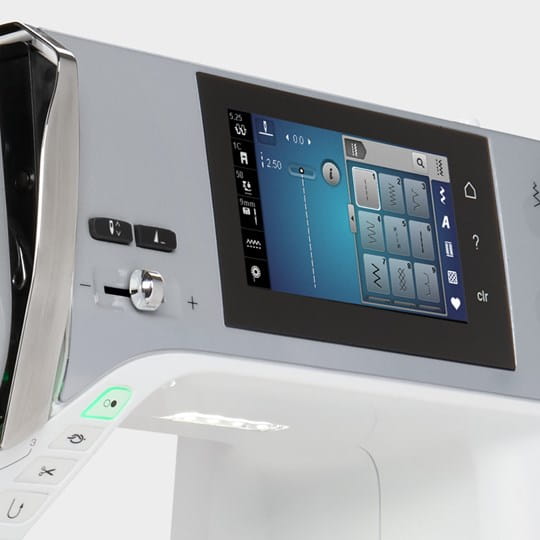

Ask your on-screen support

  • Modern colorful touch screen
  • Easy to use with simple navigation
  • On-screen support when needed

The Sewing Consultant helps you to find the right settings. Adjust suggested alterations quickly with the multifunction-knobs.

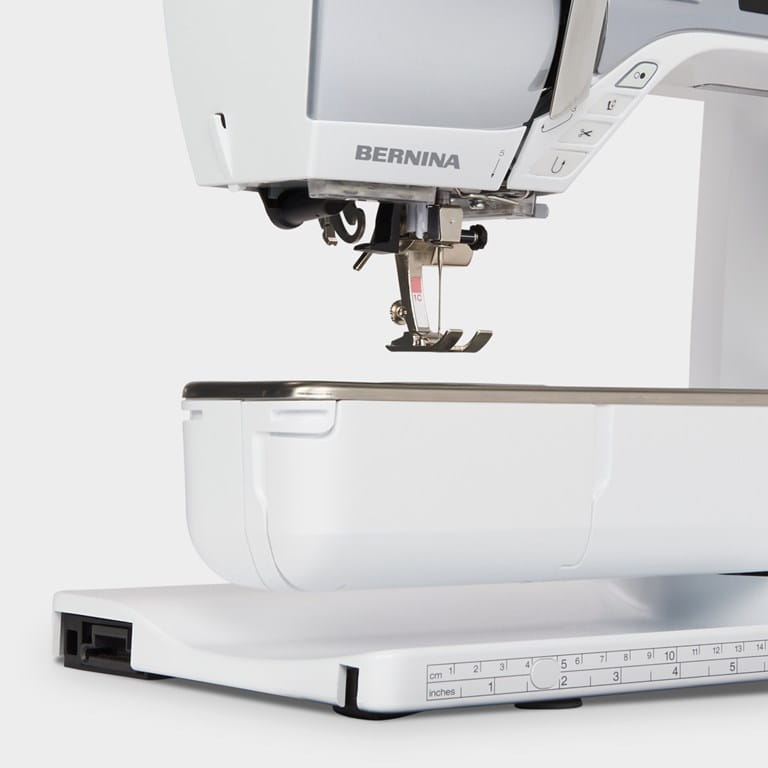

More space for creative freedom

  • Realize big projects with ease
  • Enough space for your creations
  • Embroidery module optional

The extended freearm offers 8.5" right of the needle. Therefore you will enjoy a grand sewing area for grand ideas.
