Brother

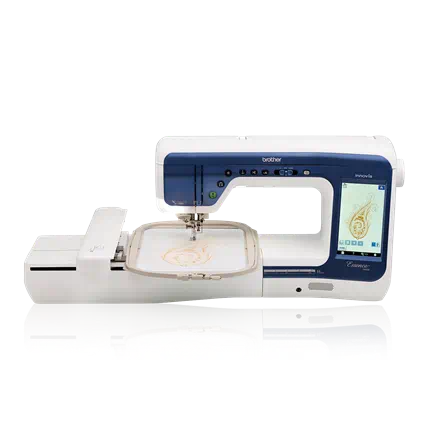

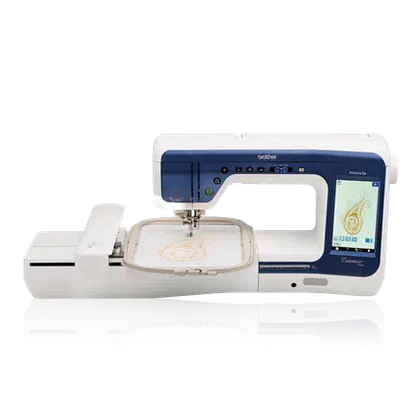

Essence Innov-ís VM5200

Essence Innov-ís VM5200

Call for More Info or Visit In-Store

Flexible financing available through Synchrony

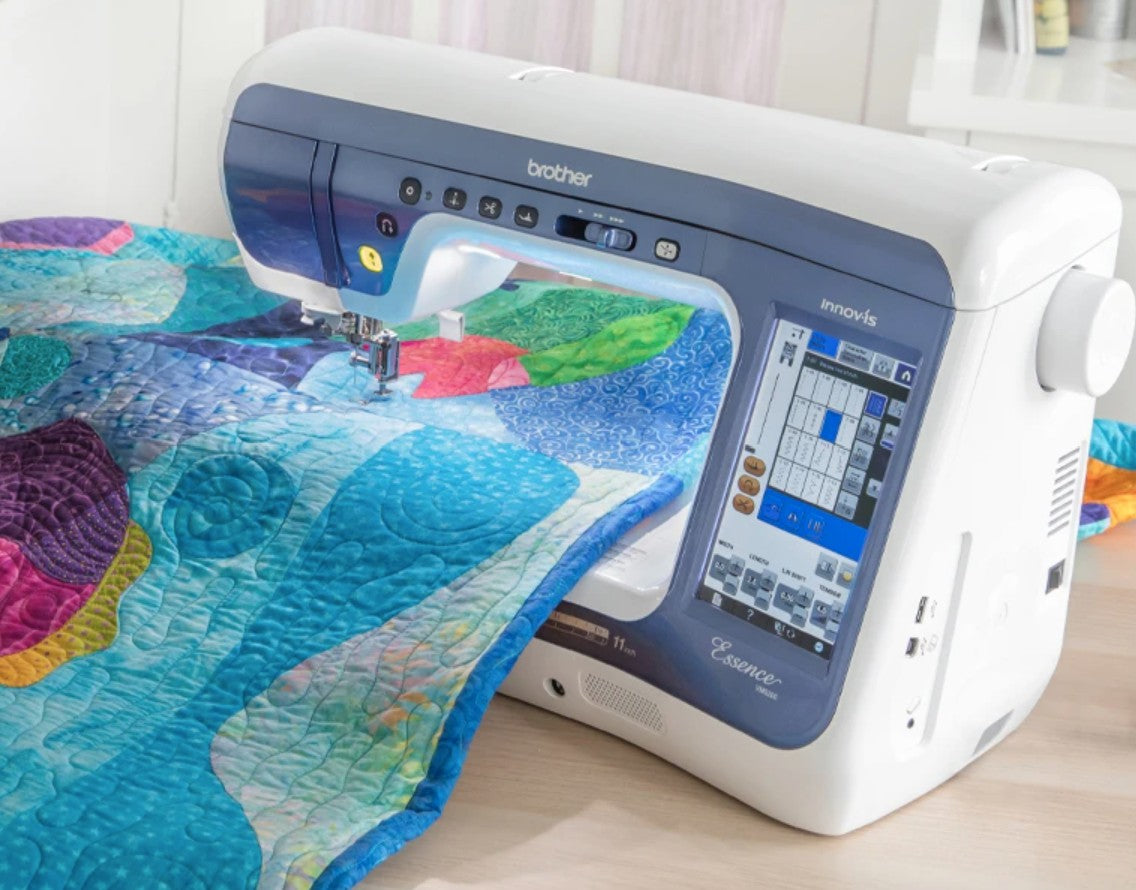

Create just about anything you imagine with the all new Essence Innov-ís VM5200 home sewing, embroidery and quilting combination machine. From intricate stitch work using the 715 built- in sewing stitches, to embroideries using one of 318 embroidery designs, let your imagination soar with this affordable and dynamic machine.

The VM5200 is perfect for any level of skill with its easy-to-use interface and Droplight Positioning Marker that tells you where your needle will drop. Time-saving features will help you create more great projects in less time. The Automatic Presser Foot functionality allows you to keep sewing without stopping to lift and lower the presser foot each time. You’ll love how easy it is to format multiple lines of text and even adjust their locations with a push of a button, right from the intuitive touch screen. Creating large projects is easier and more fun than ever! The expansive 11.25” of workspace and the 8” x 12” maximum embroidery area allows you to work on those large projects you may have struggled with in the past.

View full details

Main Features

Main Features

  • Built-in stitches, embroidery designs, and fonts - Create more with 715 built-in sewing stitches, 318 embroidery designs, and 17 lettering fonts.
  • Automatic presser foot functionality - Automatically raise or lower your presser foot after trimming with your standard foot or optional multi-function foot controller.
  • Multiple line text formatting - Embroider fonts on multiple lines with the push of a button on the screen and easily adjust the location by using the touch screen arrows.
  • Foot and pivot settings Flexible presser foot height settings and pivot function for more types of fabric and layers.

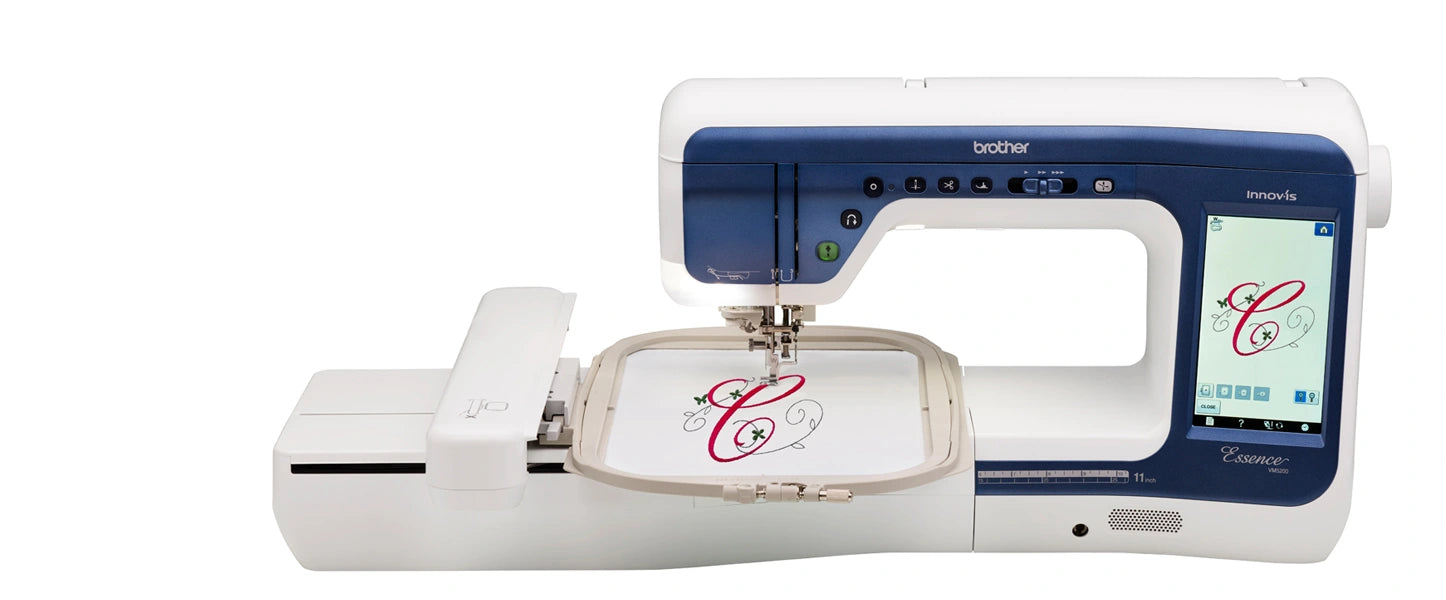

  • Large embroidery area - Maximum embroidery area of 8″ x 12″ for your larger projects.
  • 10" LED lighting - Up to 50% brighter than most Brother machines.
  • 11.25" Workspace - Handle your larger projects with ease

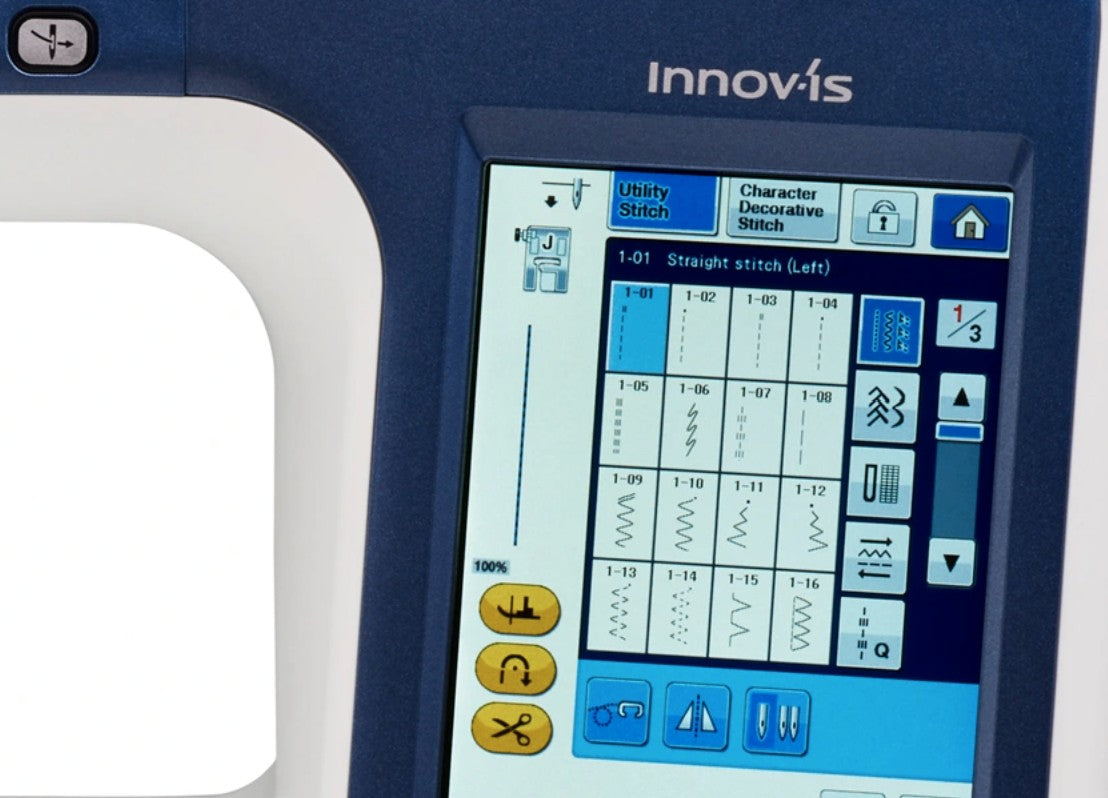

  • 7" LCD touch screen display - Allows you to view on-screen tutorials and control the machine with large, intuitive icons
  • Up-to 1,050 stitches per minute - Create more works of art in less time
  • Automatic thread trimming - Cuts threads between color stitch blocks
  • iBroidery.com compatible - Over 5,000 designs available for purchase on ibroidery.com

Specifications

Machine Type: Sewing, Quilting & Embroidery Combo Machine

Maximum Embroidery Area: 8" x 12"

Workspace to Right of Needle: 11.25"

Maximum Sewing Speed: 1,050 stitches per minute

Maximum Embroidery Speed: 1,050 stitches per minute

Built-In Sewing Stitches: 745 total (715 built-in + 30 on CD)

Built-In Embroidery Designs: 318

Built-In Embroidery Fonts: 17

Built-In Sewing Lettering Fonts: 5

Built-In Frame Pattern Combinations: 140

Buttonhole Styles: 14 one-step

Display Size: 7" LCD Full Color Touchscreen

LED Lighting: 10" LED lighting system

Needle Threader: Automatic

Thread Cutter: Automatic thread trimming

Automatic Presser Foot Lift: Yes

Pivot Function: Yes

Presser Foot Pressure Adjustment: Yes

Automatic Height Adjustment (AHA): Yes

My Custom Stitch Feature: Yes

Quick-Set Bobbin: Yes

Bobbin Type: Top-loading full rotary hook

Feed Dog System: 7-point feed system

Knee Lifter Included: Yes

USB Connectivity: Yes

Computer Connectivity: Yes

On-Screen Editing: Yes

On-Screen Tutorials: Yes

Drag & Drop Embroidery Editing: Yes

Color Sort Feature: Yes

Thread Wiper: Yes

Pattern Rotation: 1°, 10°, and 90°

Included Embroidery Hoops: 8" x 12" and 5" x 7"

Compatible with iBroidery.com: Yes

Compatible with Brother Embroidery Software: Yes

Optional MuVit™ Digital Dual Feed Compatible: Yes

Automatic Thread Tension: Yes

Weight: Approximately 34–43 lbs

Machine Dimensions: Approx. 27.16" W x 12.67

Accessories Included

Zigzag Foot “J”

Monogramming Foot “N”

Overcasting Foot “G”

Zipper Foot “I”

Buttonhole Foot “A”

Blind Stitch Foot “R”

Button Fitting Foot “M”

Free Motion Quilting Foot

1/4" Quilting Foot with Guide

Embroidery Foot “W+”

Straight Stitch Foot

Walking Foot

Knee Lifter

Foot Controller

Power Cord

Wide Table

Soft Cover

Embroidery Unit

8" x 12" Embroidery Hoop

5" x 7" Embroidery Hoop

Grid Sheet Set

Embroidery Bobbin Thread

Stabilizer Material

USB Cable

My Custom Stitch CD

Accessory Bag

Seam Ripper

Needle Set

Twin Needle

Ball Point Needle

Cleaning Brush

Eyelet Punch

Screwdrivers

Multi-Purpose Screwdriver

Disc-Shaped Screwdriver

Spool Caps (Small, Medium, Large, Special)

Extra Spool Pin

Spool Felt

Bobbins

Seam Guide

Cord Guide Bobbin Cover

Specialty Thread Bobbin Cover

Embroidery Needle Plate Cover

Straight Stitch Needle Plate

Bobbin Case for Bobbin Work

Operation Manual

Quick Reference Guide

Embroidery Design Guide

Operation Manual Quick Reference Guide

745 Sewing Stitches

Create more with 745 sewing stitches (715 built-in and 30 stitches on CD), 318 embroidery designs, and 17 lettering fonts.

318 Built-In Embroidery Designs

Start creating right away with 318 built-in embroidery designs, including elegant florals, decorative patterns, seasonal motifs, borders, and more. The Essence VM5200 gives you a wide variety of creative options built directly into the machine, making it easy to personalize projects without needing additional design downloads.

11.25" Workspace

Enjoy more room for larger projects with an expansive 11.25" workspace to the right of the needle. This extra sewing space makes it easier to handle quilts, embroidery projects, home décor, and bulky fabrics while giving you greater comfort and control during stitching.
